产品名称：小型磨边机
产品应用领域：玻璃磨边机

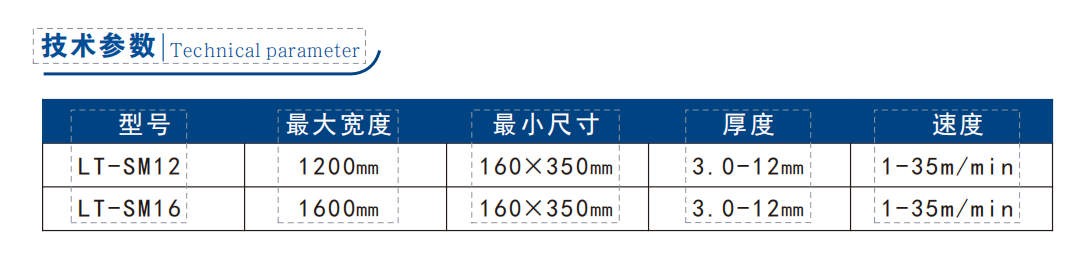

洛阳洛腾玻璃机械设备参数：
技术特点：

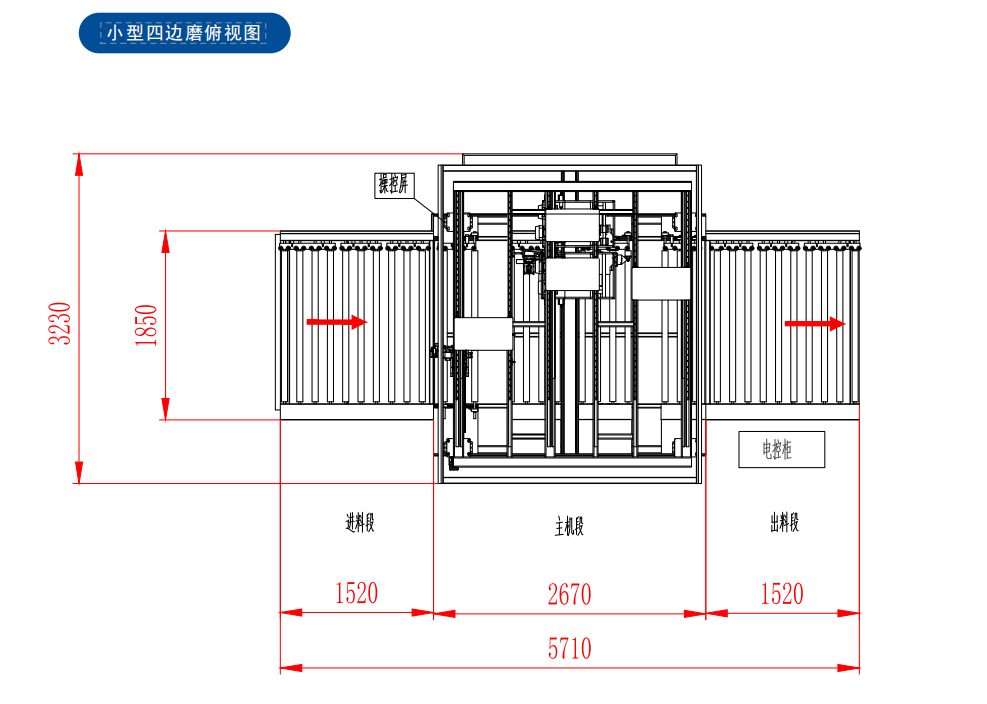

1.结构特点：采用多梁四磨头配置，整体尺寸为3.2*9.4m，占地空间小，用于加工平板玻璃的除膜及棱角的磨削；2.性能：四个磨头能够完成一次性磨四条边的过程，适用于矩形平板玻璃四条边的倒棱角和除膜，最小磨削尺寸到160*350mm；
3.小型四边磨边机整机采用人机界面和伺服运动控制系统，实现高效、高精度、节能、智能的设计理念；
4.设备操作界面由触摸屏+PLC控制、内置一键启动功能，操作简单、使用方便。
Technical characteristics：
Structural features: It adopts a multi beam four grinding head configuration, with an overall size of 3.2 * 9.4m and a small footprint. It is used for film removal and edge grinding in the processing of flat glass; Performance: Four grinding heads can complete the process of grinding four edges at once, suitable for chamfering and film removal of the four edges of rectangular flat glass, with a minimum grinding size of 160 * 350mm; The small four sided grinding machine adopts a human-machine interface and servo motion control system, achieving the design concept of efficiency, high precision, energy conservation, and automation; The device operation interface is controlled by a touch screen and PLC, with a built-in one click start function, making it easy to operate and use.
